Reflex Level Indicator
Reflex Level Indicator
Product Code: RTI2000
Reflex Gauges are Designed specially to meet the most critical requirements of Petrochemical, Fertilizer, Pharmaceutical & Chemical Industries Involving Inflammable Toxic, High Pressure, High Temperature Liquids. Inner surface of glass has Reflecting Prisms. Liquid Levels shows black in contrast to mirror like surface above. As the liquid fills in the tank, the liquid level can be seen in the Reflex Type Level Gauge. Since the inner surface of the glass has Reflecting Prisms, the Liquid Levels shows black in contrast to mirror like surface above.
Specification
| Application | : | Liquids |
| Liquid Chmaber (Wetted Part) | : | MS/CS/ASTM A105/SS304/SS316/PP Other Materials on request |
| Cover Plate (Non Wetted Part) | : | MS/CS/ASTM A105/SS304/SS316/PP Other Materials on request |
| Design Temperature | : | Upto 230°C |
| Design Pressure | : | Up to 40 Kg/cm² |
| C/C Distance | Upto 6000 mm | |
| Connection | : | Flanged to ASA/BS/DIN/Socket Weld/Butt Weld |
Reflex Level Indicator
Reflex Level Indicator With 2 Nos Isolation Valve And 1 No. Drain Valve
Product Code RTI2000-2IV-1DV

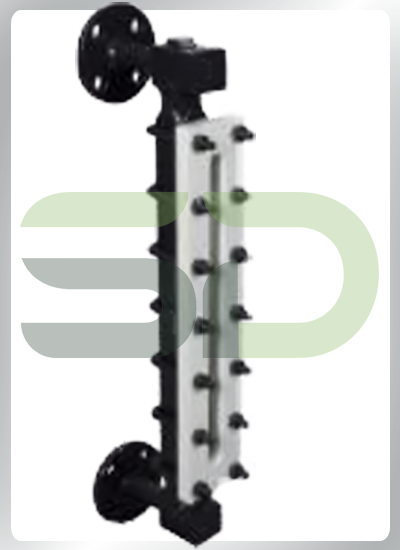

Reflex Level Indicator Without Isolation and Drain Valve
Product Code RTI2000-NIVD

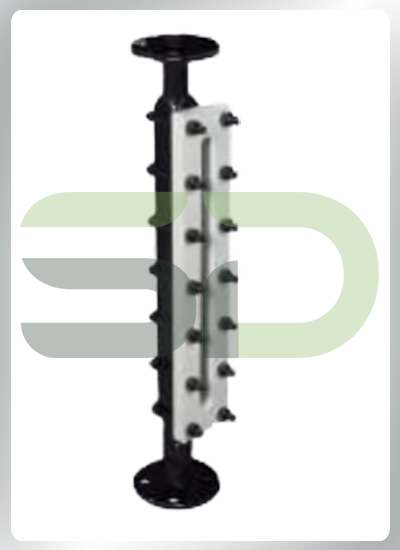

Reflex Level Indicator With Vertical Connection and Without Isolation and Drain Valve
Product Code RTI2000-VF

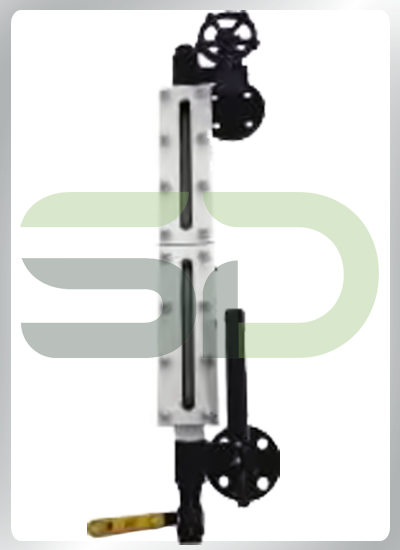

Reflex Level Indicator With Spring Loaded Push Valve & Drain Valve
Product Code RTI2000-SPRDV

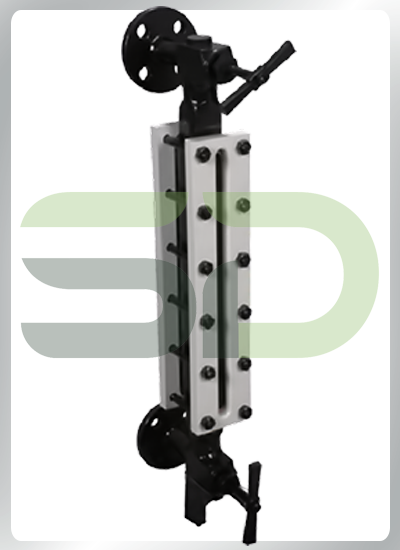

Reflex Level Indicator With Frost Free Arrangement
Product Code RTI2000-VFFA

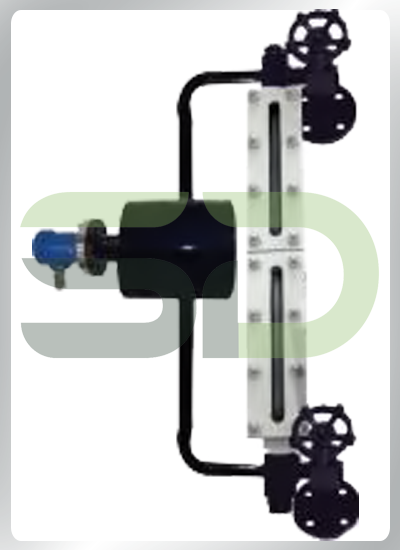

Reflex Level Indicator With High & Low Level Switch
Product Code RTI2000-HLS

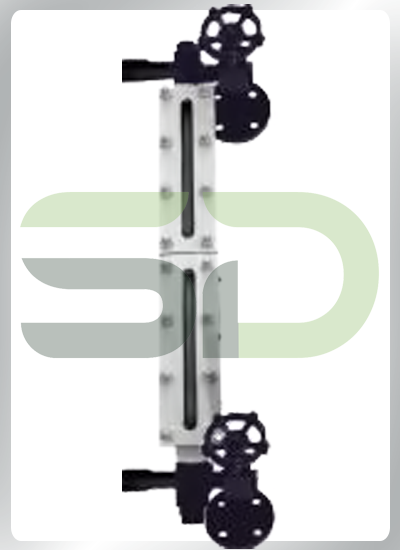

Reflex Level Indicator With Steam Jacket
Product Code RTI2000-SJ
