Purge Rotameter With Rear Connection And With One Flow Alarm Switch Adjustable Throughout Flow Range
Purge Rotameter With Rear Connection And With One Flow Alarm Switch Adjustable Throughout Flow Range
roduct Code: (ST Series)
Purge Rotameter is an instrument used to measure instant flow rate of Liquids and Gases and are commonly used for purging or low flow measurement.
Design and Calibration conforms to ISA-RP16.5 & ISA-RP16.5
Specification
| Fluid | : | Liquids & Gases |
| Density / Sp. Gravity | : | Up to 1.85 |
| Viscosity | : | Up to 220 cp |
| Design Temperature | : | Up to 100°C |
| Design Pressure | : | Up to 5 Kg/cm² |
| Measuring Range | : | 0.6 to 160 LPH of Water/Liquid 10 to 5000 NLPH of Air/Gas at NTP |
| Line Size | : | Up to 1″ NB |
| Available Materials | : | SS304/SS304L/SS316/SS316L/PTFE/Monel/Hastalloy |
| Connection | : | Flanged to ASA/BS/DIN/ Triclover Standard Screwed to BSP/NPT(M/F) |
| Accuracy | : | ±2% of FSD & ±1.5% on request |

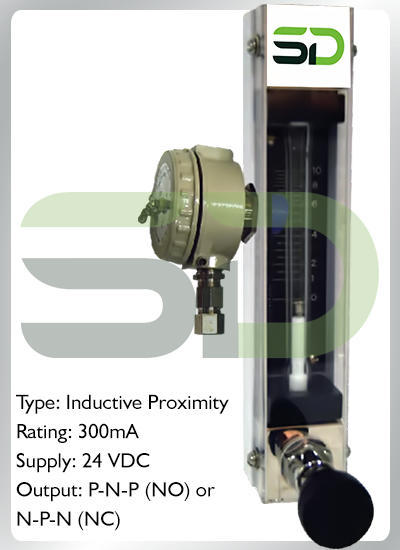

Purge Rotameter With Rear Connection And With One Flow Alarm Switch Adjustable Throughout Flow Range
Purge Rotameter With Rear Connection And With One Flow Alarm Switch Adjustable Throughout Flow Range
Product Code STFS
Purge Rotameter With Vertical Screwed Connection And Without Isolation Valve
Product Code STSV
Purge Rotameter With Rear Connection And Without Isolation Valve
Product Code STRC

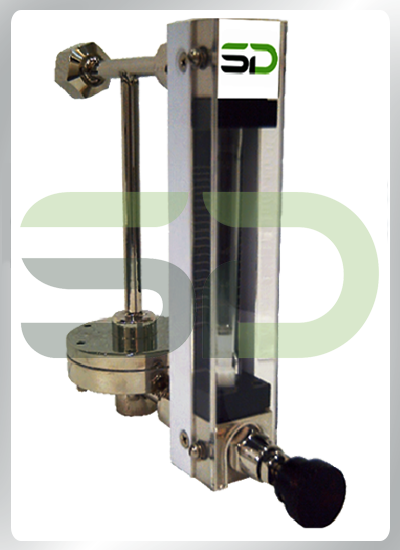

Purge Rotameter With DP Regulator And Isolation Valve
Product Code STDPR
Purge Rotameter With Flanged Connection And Without Isolation Valve
Product Code STFV
Purge Rotameter With Vertical Screwed Connection And With Isolation Valve
Product Code STVSV
Purge Rotameter With Flange Connection And Isolation Valve
Product Code STFVIV
Purge Rotameter With Triclover Connection And Without Isolation Valve
Product Code STTC

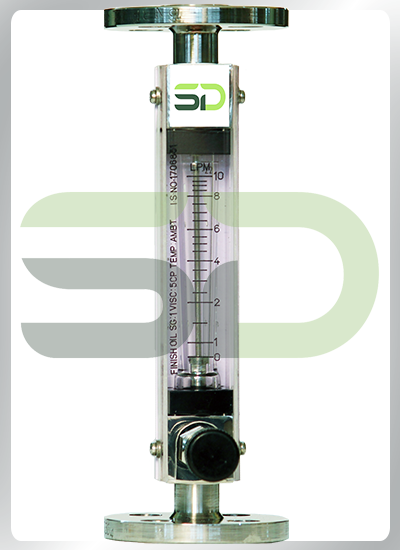

Purge Rotameter With Triclover Connection And Isolation Valve
Product Code STTCIV
