Metal Tube Rotameter With 4-20 mAmp Transmitter & Totalizer
Metal Tube Rotameter With 4-20 mAmp Transmitter & Totalizer
Product Code: (SDMT Series)
It is an instrument used to measure instant flow rate of Liquids and Gases. Can be used for metering of translucent/opaque fluids under high operating pressure and temperature.
Design & Calibration Conforms to ISA-RP16.5 & ISA-RP16.6
Specification
| Fluid | : | Liquids & Gases |
| Density / Sp. Gravity | : | Up to 2.95 |
| Viscosity | : | Up to 200 cp |
| Design Temperature | : | Up to 150°C |
| Design Pressure | : | Up to 25 Kg/cm² |
| Measuring Range | : | 100 to 40,000 LPH of Water/Liquid 3.3 to 1400 Nm³/hr of Air/Gas at NTP |
| Line Size | : | Up to 4″ NB |
| Available Materials | : | SS304/SS304L/SS316/SS316L/PTFE lined on SS |
| Connection | : | Flanged to ASA/BS/DIN/ Triclover Standard Screwed to BSP/NPT(M/F) |
| Accuracy | : | ±2% of FSD & ±1.5% on request |
| Enclosure | : | Weather proof, IP-65 / Flame Proof |
Metal Tube Rotameter With 4-20 mAmp Transmitter & Totalizer

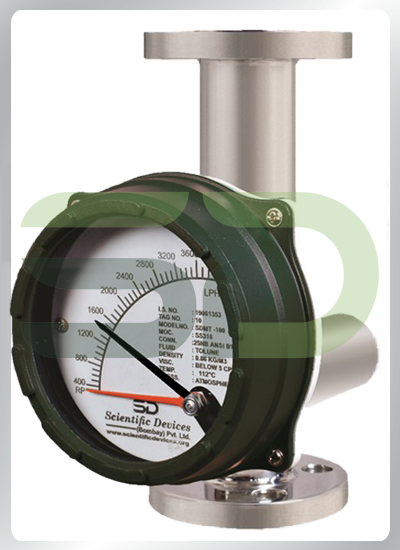

Metal Tube Rotameter With Flow Alarm Switch Adjustable Throughout Flow Range
Product Code SDMTFS
Metal Tube Rotameter with 4-20 mAmp Transmitter & Totalizer
Product Code SDMT-TX

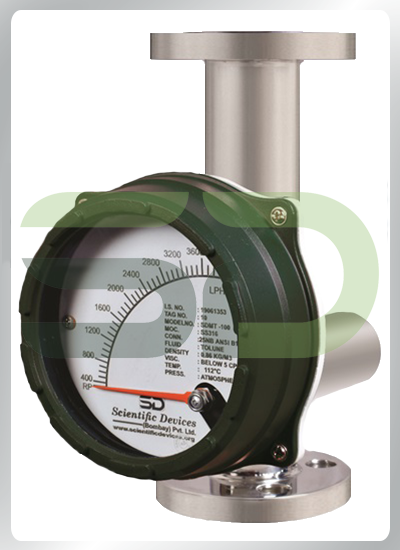

Metal Tube Rotameter With Steam Jacket
Product Code SDMTSJ

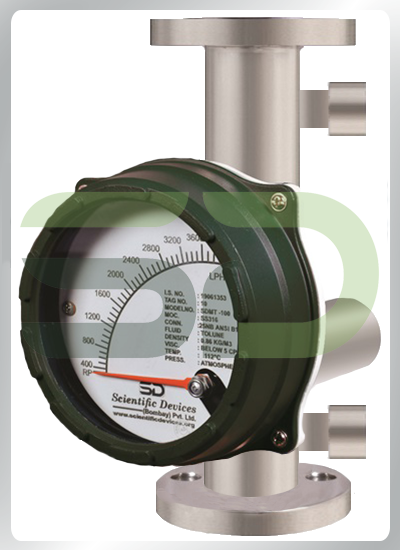

Metal Tube Rotameter with Tri-Clover Fitting
Product Code SDMT-TC

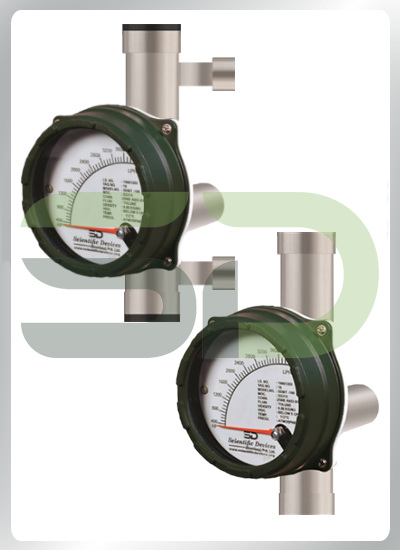

Metal Tube Rotameter with Screwed Connection
Product Code SDMT-RSC / VSC
Metal Tube Rotameter With Flange Connection rear/side entry
Product Code SDMT-RFC / SDFC
