By-Pass Glass Tube Rotameter
By-Pass Glass Tube Rotameter
Product Code: (BPCSDG Series)
Suitable for measuring flow rates in 50 NB & above pipeline. Available in a variety of materials, carrier rings, impulse piping and rotameter as flow indicator. Design Standard confirms to ISO 5167/BS 1042. This is basically an online Rotameter either glass tube (SDG Series) or metal tube (SDMT Series) placed in a By-Pass piping. The only difference is the range orifice of the Rotameter at the inlet. This range orifice is designed in such a way that the differential pressure through the By-Pass piping is equivalent to the differential pressure across the mainline orifice. With this arrangement, rotameter in the By-Pass piping works as a Manometer.
Specification
| Fluid | : | Liquids, Gases & Steam |
| Density / Sp. Gravity | : | Up to 1.85 |
| Viscosity | : | Below 10 cp |
| Design Temperature | : | Up to 150°C |
| Design Pressure | : | Up to 13 Kg/cm² in case of SDG SeriesUp to 25 Kg/cm² in case of SDMT Series |
| Measuring Range | : | 22 to 300 M³/hr of Water /Liquid 0.1 to 800 Nm³/hr of Air/Gas at NTP |
| Line Size | : | 50 NB to 450 NB |
| Carrier Ring Materials | : | MS/CS/SS304/SS304L/SS316/SS316L/Monel/Hastalloy/PVC/PP |
| Connection | : | Carrier Ring suitable to mount between ASA/BS/DIN Flanges |
| Accuracy | : | ±2% of FSD & ±1.5% on request |
By-Pass Glass Tube Rotameter

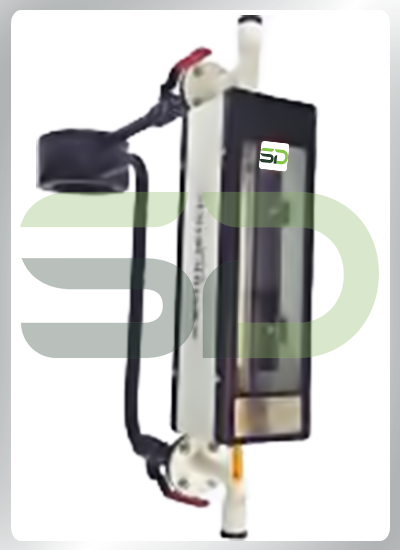

Vertical Mounting By-Pass Glass Tube Rotameter With Carrier Ring
Product Code BPCSDGV

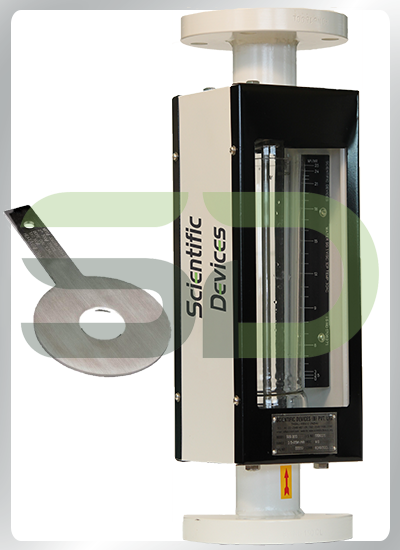

Only Orifice Plate & Glass Tube Rotameter Without Carrier Ring And Impulse Piping For By-Pass Installation
Product Code BPC-SDG-OP

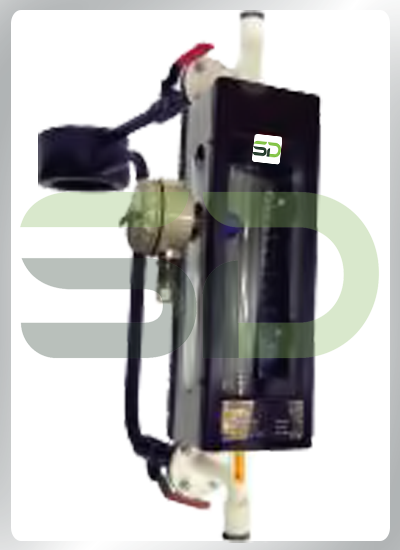

By-Pass Glass Tube Rotameter With Carrier Ring & one Flow Alarm Switch adjustable Throughout flow range
Product Code BPCSDGFS1
By-Pass Glass Tube Rotameter With Carrier Ring, High & Low Flow Alarm Switch adjustable Throughout flow range
Product Code BPCSDGFS2
By-Pass Glass Tube Rotameter with Weld neck Orifice Flange Assembly
Product Code BPCSDG-OP-WN
